Loader Parts in Texas - A popular type of industrial equipment used in a variety of applications is the loader. This industrial machine is utilized for moving items and loading materials including snow, feed, woodchips, grain, dirt, demolition debris, asphalt, raw materials, sand and similar items. Loaders transport material into rail cars, dump trucks, feed-hoppers and conveyor belts. There are many types of loaders made for specific applications including skid-steer, payloader, skip loader, front loader, scoop, shovel, bucket loader and wheel-loader models.
Description
Loaders are a specific type of tractor outfitted with wheels or tracks with a wide, front-mounted bucket that is connected to the end of two booms or arms. Loaders can pick up items including dirt, sand or gravel and move it to a different location on the job site without having to push it along the ground. Loaders transport stockpiled materials from the ground and deposit them into an open trench or dump truck. Removable or permanently mounted attachments make up the loader assembly. Additional tools may be interchanged for the bucket to provide more versatility. Loaders can utilize mounted forks to transport pallets or shipping containers. A hydraulically operated clamshell bucket can be attached for light dozer and scraper applications. Large bales of hay or straw can be transported via a loader with a bale grappler attachment.
The term front loader is given to sizeable loaders that feature a front bucket. Smaller loader tractors can be outfitted with a tiny backhoe and are called JCBs, loader backhoes or backhoe loaders. This equipment is utilized for laying pipe, loading trucks, digging, clearing debris and similar jobs. The loader is not as efficient as an excavator or backhoe as it is unable to dig lower than its’ wheel level. The loader bucket capacity is in the range of half a cubic meter to 36 cubic meters. The capacity of a front loader bucket is higher compared to a backhoe loader.
Most loaders consist of wheels as opposed to tracks, although, track models are available. Construction sites commonly employ track models since rubber tires can be easily damaged from sharp nails and similarly sharp things. Wheels provide better mobility and speed and less damage to paved surfaces compared to tracks; however, tracks provide better traction. Within construction locations, loaders are used to materials and digging tools within the job site.
Front loaders are often used for snow removal from parking lots, sidewalks and other locations that are too narrow for heavy equipment. They can be used as snowplows with the proper attachment or can utilize a snow-basket or bucket to load snow into a dump truck or snow plow compartment.
Specialized “high-tip” buckets are used to transport lightweight items including woodchips, pea gravel and peat, ensuring easier emptying while the bucket is extended and full height. Front loaders have gained popularity over the last 20 years within earthmoving and urban engineering applications. There are many loader sizes available to facilitate many duties.
Large loaders do not rely on automotive steering mechanisms unlike standard tractors with a front bucket or backhoes. These loaders steer by way of a hydraulically actuated pivot point that is situated between the rear and front axles, known as articulated steering. This model allows most of the weight to be carried by the machine thanks to the solid front axle. Greater maneuverability is offered with the articulated steering. The attachment and the front wheels rotate along the same axis, helping the operator steer the load in an arc once the machine is positioned. Once the machine is twisted to the side with a heavy load raised, there is a greater risk of turning over towards the wide side.

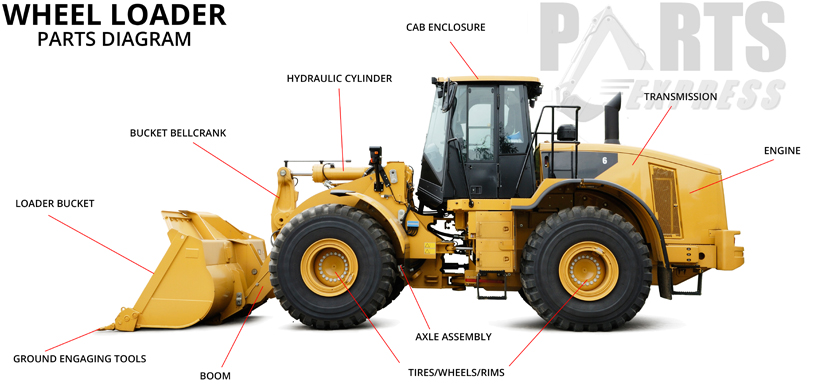

Major component items include the engine that is typically diesel, hydraulic items such as pumps, motors and valves along with transmission components including wheels, tracks, axles, motors, gearbox, pumps etc.
The loader engine controls the hydraulics and the transmission which bring movement to the front attachments such as forks, sweepers, buckets and the like. This equipment is utilized to handle sand, gravel, manure and similar items within model-specific lifting specifications.
Wheel Loaders
The first wheel loader consisted of a tractor with a rear-wheel drive. Current wheel loaders feature front and rear wheels of the same dimensions and are articulated.
Armored Wheel Loaders
Many military jobs use an armored Caterpillar 966 wheel loader to handle construction jobs and combat engineering tactics. This equipment is commonly used for building fortification, constructing bases and disassembling roadblocks. The machine is protected against rocks, stones, Molotov cocktails and gunfire with the addition of armor plating. Certain elite police squads have relied on wheel loaders for military use to open routes and lead the way for police. Remote controlled wheel loaders are used by some police and military departments.
Tractor Front Loaders
Tractors with 50 to 200 horsepower may use a loader addition. These tractor loaders were created to achieve a variety of farming tasks. They are highly versatile and lower in cost in comparison to Telehandler equipment. Tractor loaders can utilize a variety of attachments such as hydraulic grabs and spikes to facilitate bale handling and silage applications. Fork attachments are ideal for pallet applications and buckets are used frequently for agricultural jobs.
Compact Front End Loaders
Popular additions to CUTs or compact utility tractors and farm tractors are front-end loaders or FELs. Compact models are small and offer 18 to 50 HP, making them ideal for landscaping and groundskeeping. The traditional dogleg design, curved arm and semi-curved options keep front-end loaders flexible to complete a variety of jobs.
CUT size tractors featuring front-end loaders can complete numerous jobs, especially when outfitted with special attachments. To facilitate better digging capacity, a tooth bar may be added to the front edge of the machine. A QA or quick attach system or quick coupler enables buckets and attachments including pallet forks and bale spears to be easily removed and attached.
A front-end loader known as an LHD or load-haul-dump unite is helpful in compact mining situations. It relies on many different buckets and operates with electric or diesel engines.
Skid Loaders
A skid-steer loader, skid loader or skidsteer refers to a small engine powered loader featuring a rigid frame. This machine has lift arms that are capable of attaching to many tools. These units consist of a 4-wheeled vehicle that mechanically synchronizes on either side. Each set of right and left wheels are capable of being driven independently. Typically, the wheels hold a straight, fixed alignment on the body and have no separate steering mechanism.
Turing maneuvers are completed by differential steering. Each side of left and right wheel pairs operate at different speeds, allowing the machine to turn by skidding or dragging wheels of fixed-orientation over the ground. The rigid frame and strong wheels stop torsional forces from happening due to the dragging motion. Tracked vehicles and skid steers are capable of destroying soft road surfaces and fragile environments due to high ground friction.
Low ground friction is converted by specially designed wheels. There are specific skid-steer units that can conduct zero-radius turns and pirouette turning to facilitate maximum maneuverability. These functions are desirable for jobs requiring a loader that is compact and agile. Some models use tracks in place of wheels and are called multi-terrain loaders.
In skid loaders, the lift arms are found beside the operator and have pivot points situated behind the driver’s shoulders. The operators’ close proximity to the boom movement in earlier models made them not as safe as original front loader models, specifically while entering and exiting the unit. Today’s modern models have completely enclosed cabs and additional features to keep the operator safe. These machines are similar to other front loader models and are capable of transporting items from one location to the next via the bucket for pushing items across the ground or loading them into a trailer.
History of Tracked Loaders
Tracked loaders are complete with a chassis for loading items and digging materials with a loader There have been three major design evolutions for this equipment, each time resulting in greater efficiency and versatility. Being able to complete a large variety of tasks, this equipment is a popular add on to many existing fleets.
The first tracked loaders were created from track tractors; however, they offered less ability to dig into harder ground surfaces, making them similar to bulldozers during that time. Most often, tracked loaders were used for moving stockpiled items into loading trucks and rail cars.
Everything changed with the addition of hydraulic integration from providing power to the loader linkages and increasing overall power. Hydraulics most importantly enabled the machine to apply down-pressure to the bucket, allowing them much better digging within compact environments. Initially, engine weight was situated on the front portion of the tracks together with other heavy loader equipment. This caused tons of heavy wear issues on the undercarriage and front idler wheels. The next big design success was the implementation of the hydrostatic drive system, greatly improving track loader efficiency.
Swingloaders
A swingloader consists of a rigid frame and swinging boom. The boom can travel 180 degrees or farther. These machines are used mainly in the railroad industry for laying rail. Numerous attachments including forks, buckets and magnets can be implemented. Agricultural applications rely on smaller machines. Swingloaders are popular in a variety of places where space is limited. These machines are commonly used in applications where space is compromised. This loader can lift and deposit on all sides.
